Equipment
Measurement Equipments
Spectrum Analyzer (E4407B)
RF spectrum, spurious and phase-noise related checks.

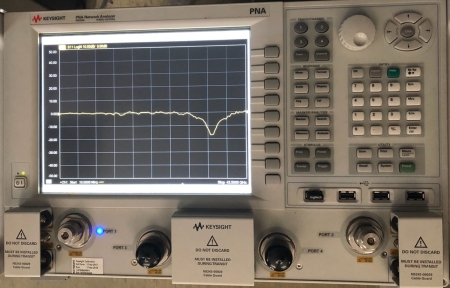

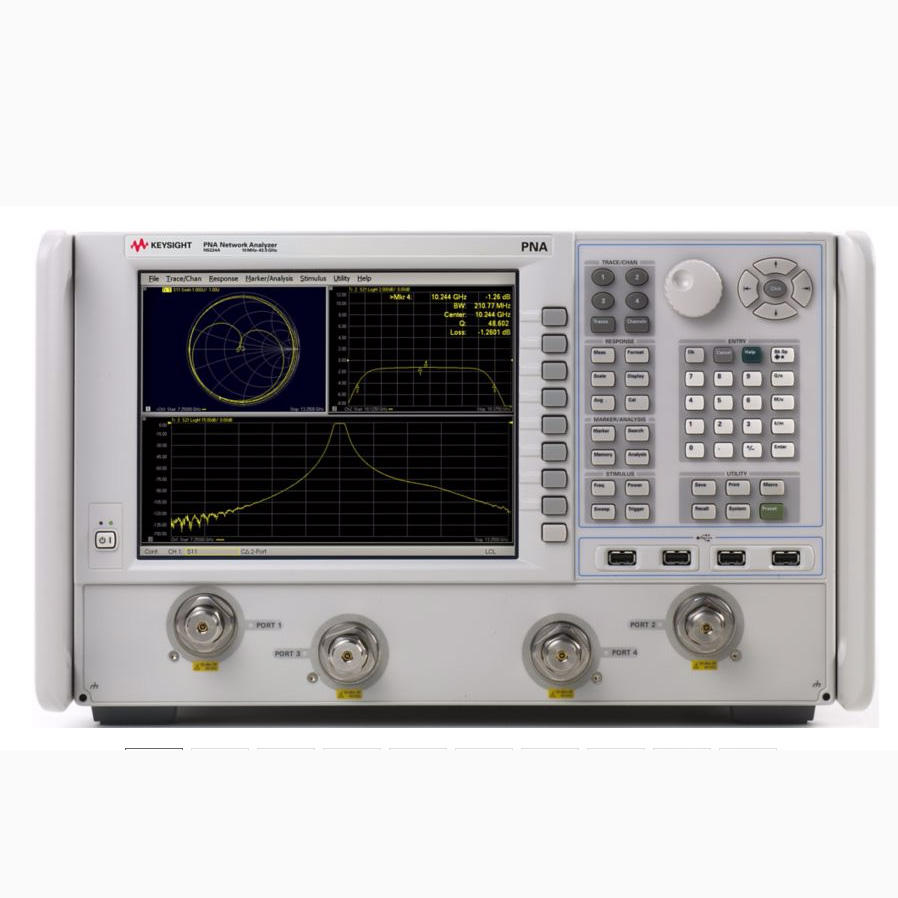

Network Analyzer (N5224A)
S-parameter measurement and fixture/de-embedding workflows.
Signal Generator (83623B)
Clean RF/LO source for characterization and system tests.

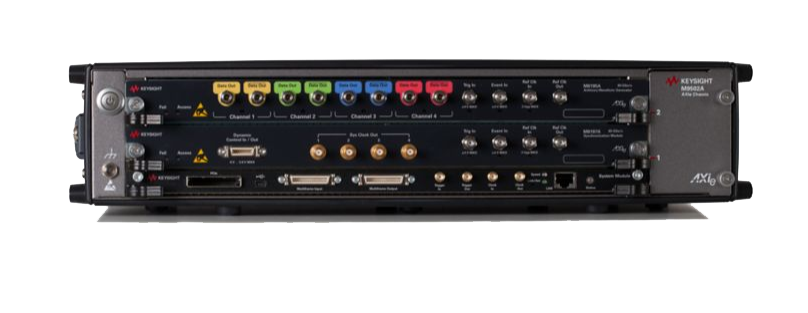

Arbitrary Waveform Generator (M8195A)
Baseband / wideband waveform generation for test setups.

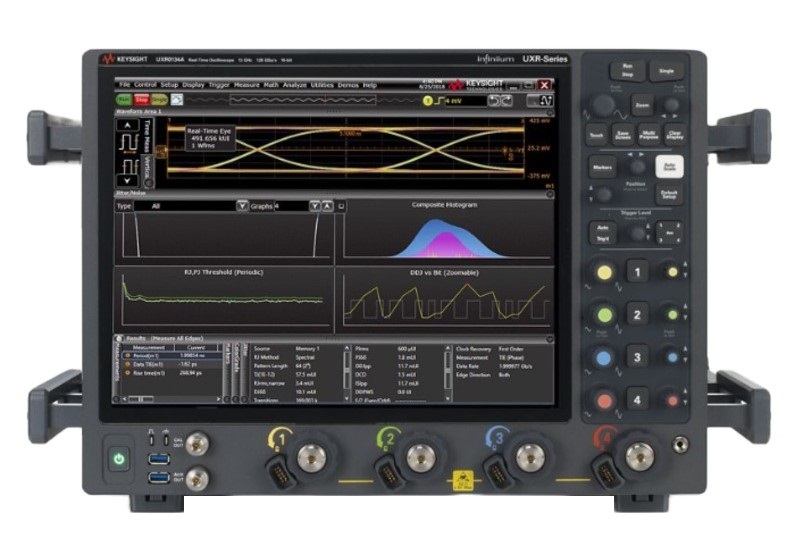

Oscilloscope (UXR0104A)
High-speed time-domain measurement and signal integrity debug.
Erickson Power Meter (VDI PM5)
mmWave/THz power measurement with suitable heads/sensors.

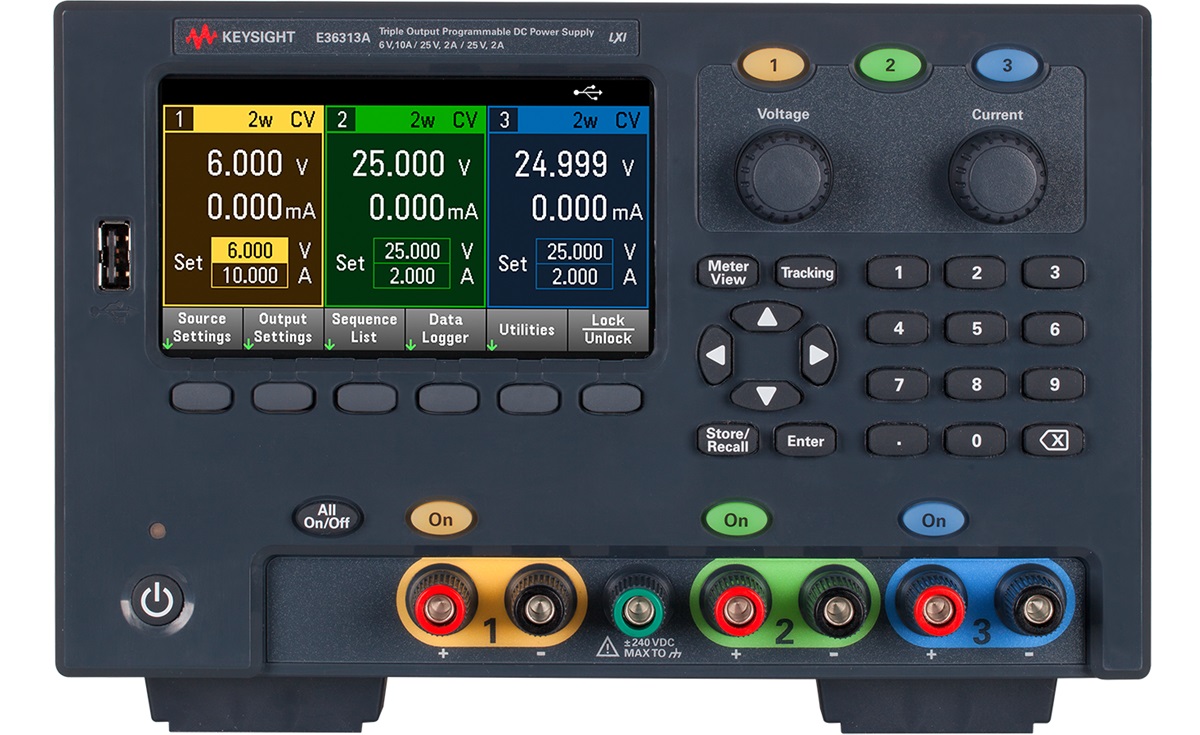

DC Supply (E36313A)
Stable DC biasing for RFIC/PA characterization.
On-Chip Probing (MStech)
On-wafer probing for RF/mmWave IC measurement.

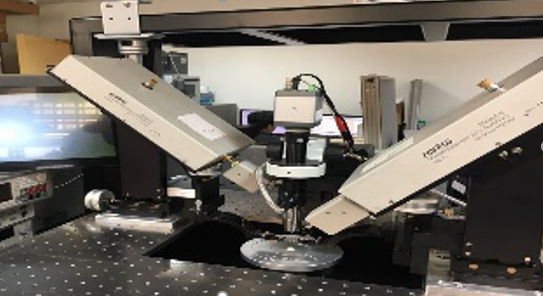

VNA Extender
Frequency extension modules for mmWave measurement. (W-Band, D-Band)

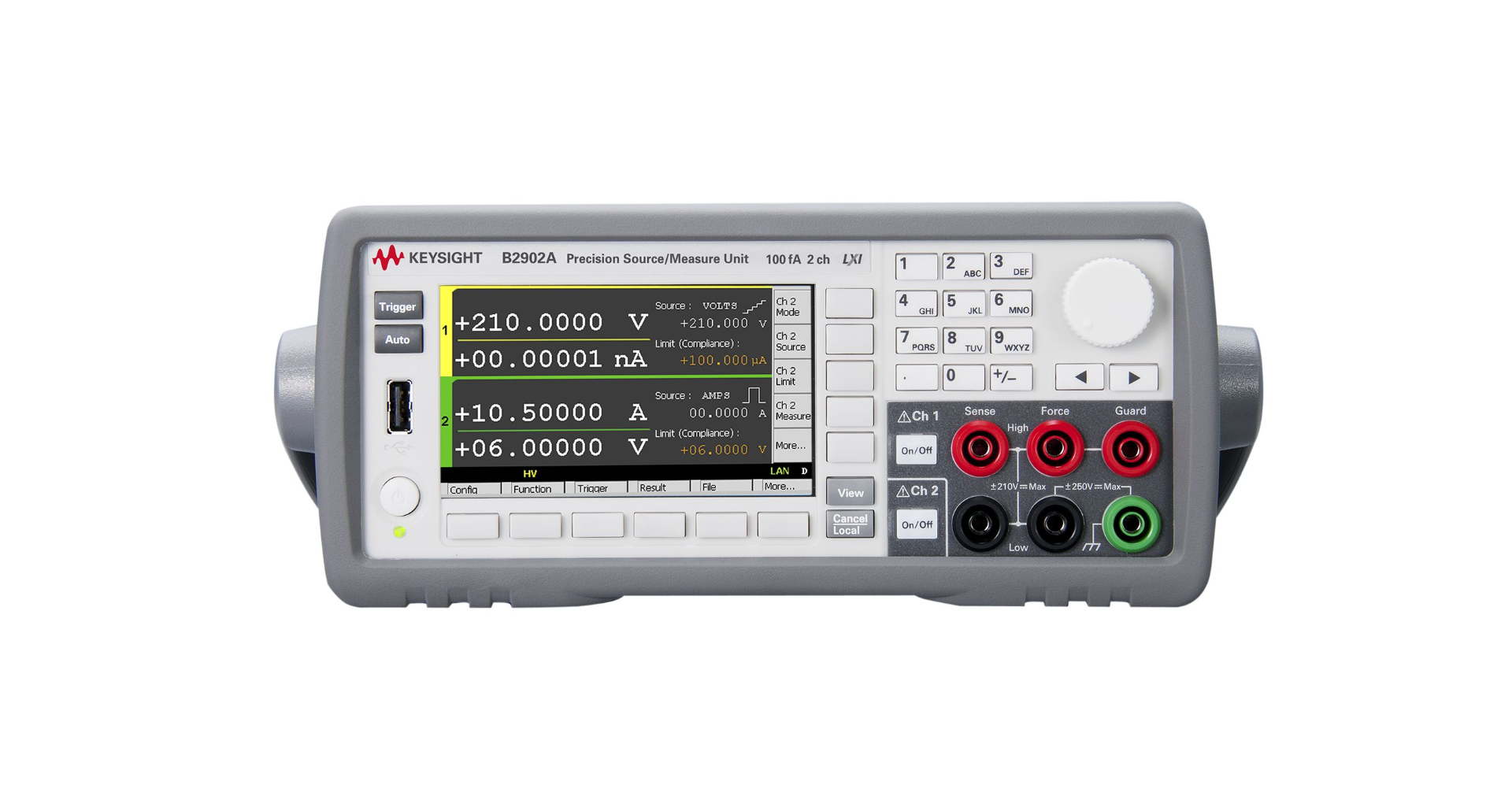

Precision Source/Measure Unit (B2902A)
A versatile 2-channel precision SMU for wide-range I-V characterization

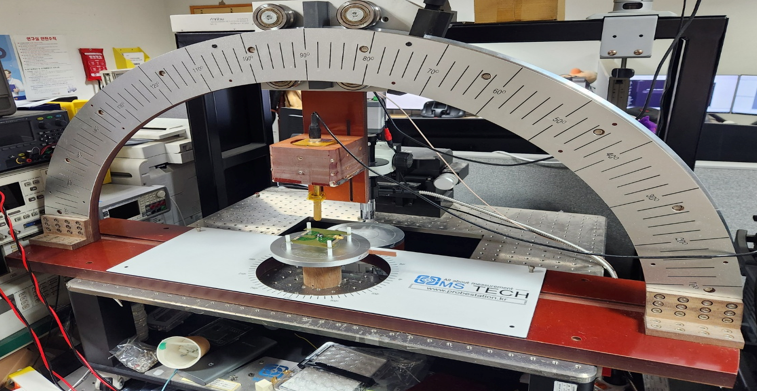

mm-Wave EIRP Charaterization Station
Station for measuring and analuzing mm-Wave EIRP performance
EDA Tools
Cadence
Custom IC, analog, and mixed-signal design.
ADS
Software for RF, microwave circuits.
HFSS (3D)
3D electromagnetic (EM) field simulation and high-frequency analysis.
EMX (2.5D)
Fast and accurate electromagnetic simulator.
OrCad
solution for schematic and PCB layout design.
Mentor
DRC/LVS/RC Extraction
